ALUMINIUM FRAME TOWERS,
LADDERS, STAGING, TRESTLES
|
Orchard Hire and Sales are a supplier of ladders, mobile
aluminium towers, staging and trestles to customers throughout
England and Wales. Trestles support a low-level working platform,
four scaffold boards wide. Ladders are appropriate for gaining
access to working platforms, but not for working off. All the
ladders are over 3m in length, and must therefore be secured in
place, or supported by a person at the base according to The Construction
(Health, Safety and Welfare) Regulations 1996. Mobile aluminium
scaffold towers are a simple, light-weight alternative to scaffolding
where conditions permit.
|
| |
|
|
|
|
|

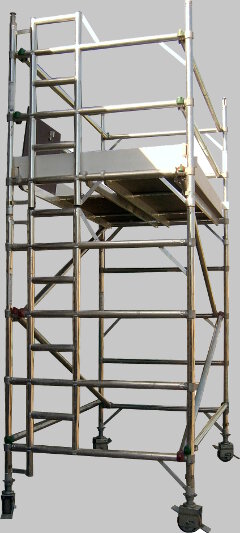

Aluminium
Ladder-frame Tower
(Kliktower ®) — BS1139
Part3 (1994). To HD1004.
Heights up to 9m.
Lengths: 2m, 2.5m, 3m.
Widths:
0.8m
(single)
1.4m (double).
|
|

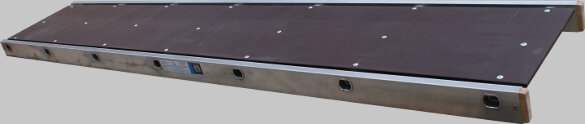

Staging
— aluminium
box section stiles with non-slip strips underneath support a non-slip,
resin bonded, plastic coated plywood deck.
Lengths
2.4m - 7.2m.
Widths
450mm or 600mm. |
|
Handrail
Brackets (for Staging) —
450mm or 600mm. Can connect two stagings side by side. Attachments
for toe-board and double handrail. Use aluminium tube for handrail. |
|
Galvanised
Steel Ladder
— Square, flat top rungs. Fully galvanised. box section
stiles. Serrated rubber feet on both ends. Can be used either way
up. Size 3.5m (single lift). |
|
Timber
Pole Ladder
— European whitewood stiles. Hardwood
rungs. Double varnished. Fitted with tie rods under every rung.
Lengths available 3m - 10m.
Sizes:
3.5m (1 lift)
5.5m (2 lifts)
7.5m (3 lifts)
9.0m (4 lifts). |
|
Aluminium
Extension Ladder
— EN131. Trade quality double
and triple push-up, extending upto 10m. Extension roof ladders also
available. |
|
Orange
Painted Steel Ladder
— Manufactured in UK to British Standards. Square non-slip rungs.
BS2037 Class 1 strength criteria. Rungs tested to 250kg loading. High
visibility orange epoxy coating for rust protection. Approximately
25% lighter than Galvanised steel ladders. Rounded edge stiles. Serrated
rubber feet on both ends. Can be used either way up.
Sizes: 5m, 6m, 7m, 8m. |
|
Adjustable
Steel Trestle
— supports 4 boards at 1.2m centres. Square section tube. Spray-paint
finish. BS1139. Adjustable heights:
Size 3 = 1.07 to 1.68m.
Size 2 = 0.76 to 1.17m
Size 1 = 0.51m to 0.71m. |
|
Trestle
Fall-protection / Handrail Bracket — attaches to trestle
top and holds up to three scaffold boards as a barrier. Can be used
in pairs for a barrier both sides of the trestle. Incorporated single
fitting enables bracing of the bracket for stability. |
