Scaffolding Ancillaries

Castor Wheel with socket for 48.3mm scaffold tube

Scaffolding Castor Wheel
with Socket (Female)

Heavy-duty off-set castor wheel with 20cm solid rubber tyre and locking break. Suitable for 48.3mm scaffold tubes. For erection of mobile scaffold towers, trolleys and podiums on flat, level surfaces.

Scaffolding Castor Wheel
with Spigot and Socket (Male)

Heavy-duty off-set castor wheel with 20cm solid rubber tyre and locking break. Top socket with internal spigot suitable for Cuplok or 48.3mm scaffold tube. Maximum load 270kg. For erection of mobile scaffold towers, trolleys and podiums on flat, level surfaces.

Corrugated Iron Sheet

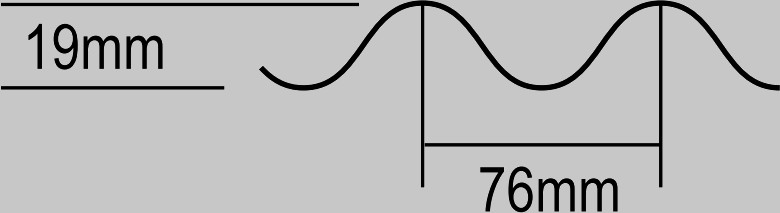

Galvanised steel sheet for temporary roofing on scaffolds. 10 corrugations of 3 inch profile. 0.7mm (0.028″) gauge, 22 SWG. BS 3083 : 1988

Length	Corrugations	Effective Cover — Overlapped	Gauge	Weight
8’0”	10 x 3″	30″ (0.762m)	0.7mm	11.87kg
10’0”	10 x 3″	30″ (0.762m)	0.7mm	14.84kg
12’0”	10 x 3″	30″ (0.762m)	0.7mm	17.81kg

Timber Scaffold Stair Treads

Made to order from a pair of stair tread couplers bolted to a section of scaffold board cut to the desired size. Up to 1200mm wide.

Steel Scaffold Stair Treads

Electro-plated. Embossed non-slip surface. Connects to diagonal scaffold tube with double couplers. BS5973.

GIN WHEELS AND LIFTING ROPE

Gin Wheel

Ring-bolt type for use with 18mm lifting rope. Individually serial number stamped and supplied with test certificate. Maximum load 250kg. Weight 5.8kg. Wheel diameter 254mm. Painted finish. Tested on a 4:1 safety factor in accordance with BS1692.

Lifting Rope

18mm staple-spun polypropylene rope. Supplied in 20, 25m, or 30m lengths with sealed ends, or as a 220m coil. High quality lifting rope that conforms to EN ISO 1346 – 2004. Low water absorption. Good alkali and acid resistance. Good abrasion resistance. Melting point 170°C.
